What to Check First When Your Chevrolet Remote Start Fails to Engage
If you step outside on a chilly morning, press your key fob's lock button followed by the remote start button, and your Chevrolet remains completely silent, you are not alone. When a Chevy remote start system refuses to engage, the absolute first step is to verify the vehicle's immediate safety and electronic prerequisites: ensure all doors are locked, the hood is fully latched, the transmission is firmly in Park, the hazard lights are off, there is no active Check Engine light, and your key fob battery has adequate voltage.
General Motors engineers remote start systems with strict fail-safe software protocols built directly into the Body Control Module (BCM) and Engine Control Module (ECM). If any single sensor reports an unsafe parameter—such as a slightly ajar hood pin or a minor engine misfire code—the system instantly cancels the remote start signal to protect the engine, prevent vehicle theft, and ensure garage safety. Drivers in the local area can easily visit Get Directions to Hawk Chevrolet of Joliet to have our certified master technicians evaluate any underlying safety interlocks.
Understanding how these interlocks interact is key to solving the issue without unnecessary frustration. Below, we break down every physical component, electrical threshold, and environmental factor that influences your Chevrolet's remote start performance.
Quick Key Fob Diagnostics: Battery Testing and Replacement Costs

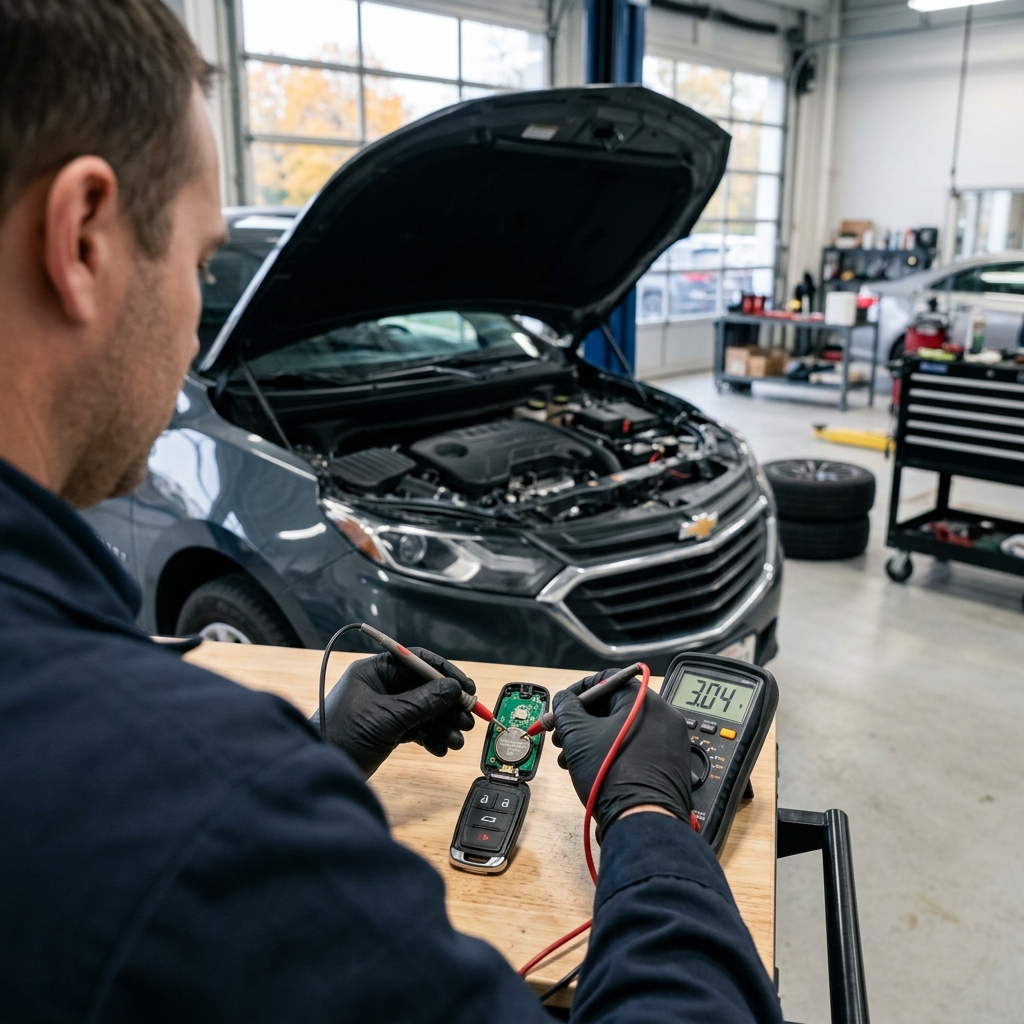

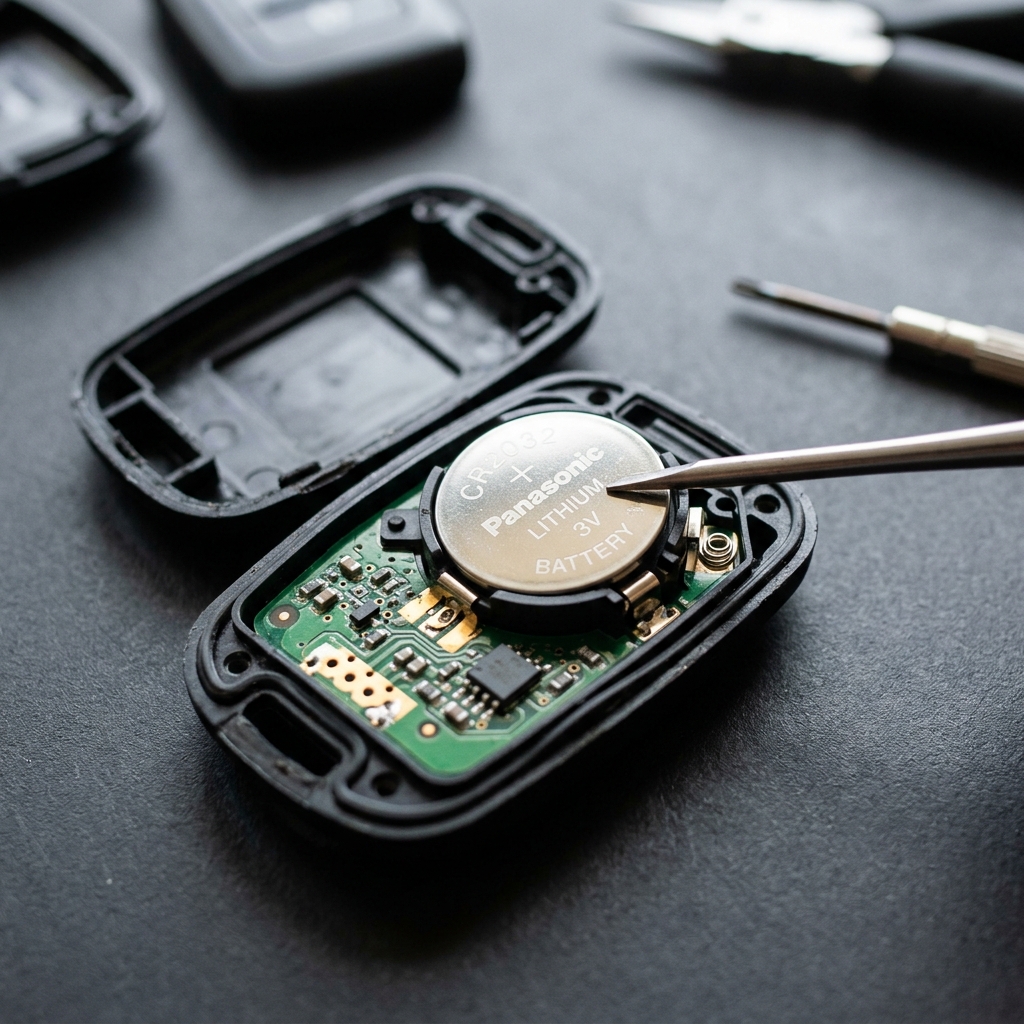

Before assuming your vehicle has a complex electrical defect, perform a rapid diagnostic check on your key fob hardware. Chevrolet remote start controllers rely on standard 3V lithium coin-cell batteries (typically CR2032 or CR2025). As these batteries age, their output drops from 3.0 volts down below 2.7 volts. While a weak battery might still have enough power to unlock your doors at close range, it often lacks the signal strength required to transmit the multi-frequency remote start command across longer distances.
How much does it cost to replace just the key fob battery in a Chevy remote start controller? Fortunately, replacing a depleted coin-cell battery costs only $5 to $15 when purchased as a DIY battery or installed directly at our service center. If replacing the battery does not restore functionality, press the lock button twice firmly before holding the remote start button for 4 full seconds. If you still hear no response, test your secondary spare fob to rule out internal circuit board wear or failed tactile switches.
Pro-Tip: Always clean the internal gold contact points inside the fob with rubbing alcohol when swapping coin cells to clear minor oxidation that blocks current flow.
Safety Inhibitors and Vehicle Status Prerequisites That Disable Remote Start
Latches & Door Switches
If any door, trunk, tailgate, or hood is unlatched or has a faulty position microswitch, remote start is disabled. The hood pin switch is the most frequent culprit because road debris and grime cause physical corrosion on the sensor, tricking the BCM into believing the engine hood is wide open.
Check Engine Lights & DTCs
Whenever an illuminated Malfunction Indicator Lamp (MIL) or stored Diagnostic Trouble Code exists in your ECM—even non-critical codes like EVAP loose gas cap alerts—the system inhibits engine starting to prevent running a compromised powertrain unattended.
Fuel & Transmission Rules
Remote start automatically aborts if low fuel warning lights are triggered, if hazard warning lights are flashing, if the gear selector shifts outside of Park, or if the key is already inserted in ignition switches on traditional turn-key Chevy models.
How 12V Battery Health and Voltage Drops Interrupt Chevrolet Remote Start

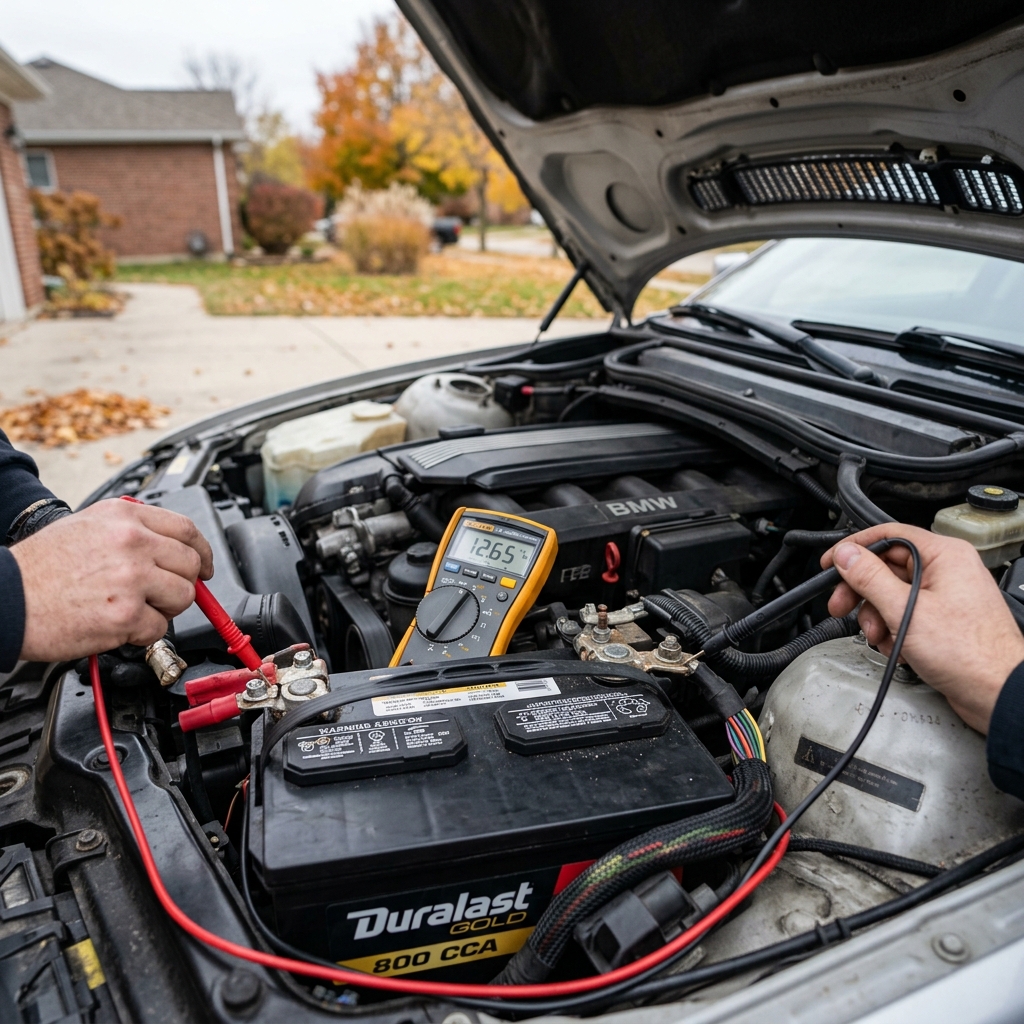

Even if your Chevy starts normally when sitting behind the steering wheel turning the key or pushing the Start button, a weak starter battery will disable remote start functionality. What minimum voltage should a Chevy car battery read during a cold morning test? Under resting conditions, a healthy 12-volt battery should read between 12.4V and 12.8V. If resting voltage dips below 12.0V, the remote start controller will decline engagement.
Furthermore, what Cold Cranking Amps rating is needed for a Chevrolet battery in freezing winter weather? Typical Chevy crossover SUVs and light trucks require between 600 CCA and 850 CCA depending on engine displacement. During cold cranking, if the starter motor experiences a heavy voltage sag below 9.6 volts, modern vehicle computers reset, aborting the remote start attempt mid-sequence to preserve electronics. If your battery fails to hold adequate cold charge, Schedule Your Service Today with certified automotive electricians.
Troubleshooting Chevy Remote Start & Battery Health Before Cold Joliet Mornings
Living in Will County means enduring unpredictable Midwestern seasonal shifts. When winter temperatures plummet near the Des Plaines River and across the I-80 corridor, lead-acid batteries suffer a severe loss of chemical efficiency. At 0°F, a conventional car battery loses up to 60% of its total cranking capacity, while the engine simultaneously requires nearly twice as much power to push thick, cold engine oil through internal oil galleries.
Preventing sudden winter failure requires testing your vehicle electrical systems prior to extreme sub-zero weather along Will County transit routes. If your vehicle struggles to crank or drops remote start functionality during early autumn frost, Call us at (815) 472-8001 to speak directly with an expert service manager before getting stranded in freezing temperatures.
Upgrading to an AGM Battery: Can You Replace a Standard Chevy Flooded Battery?

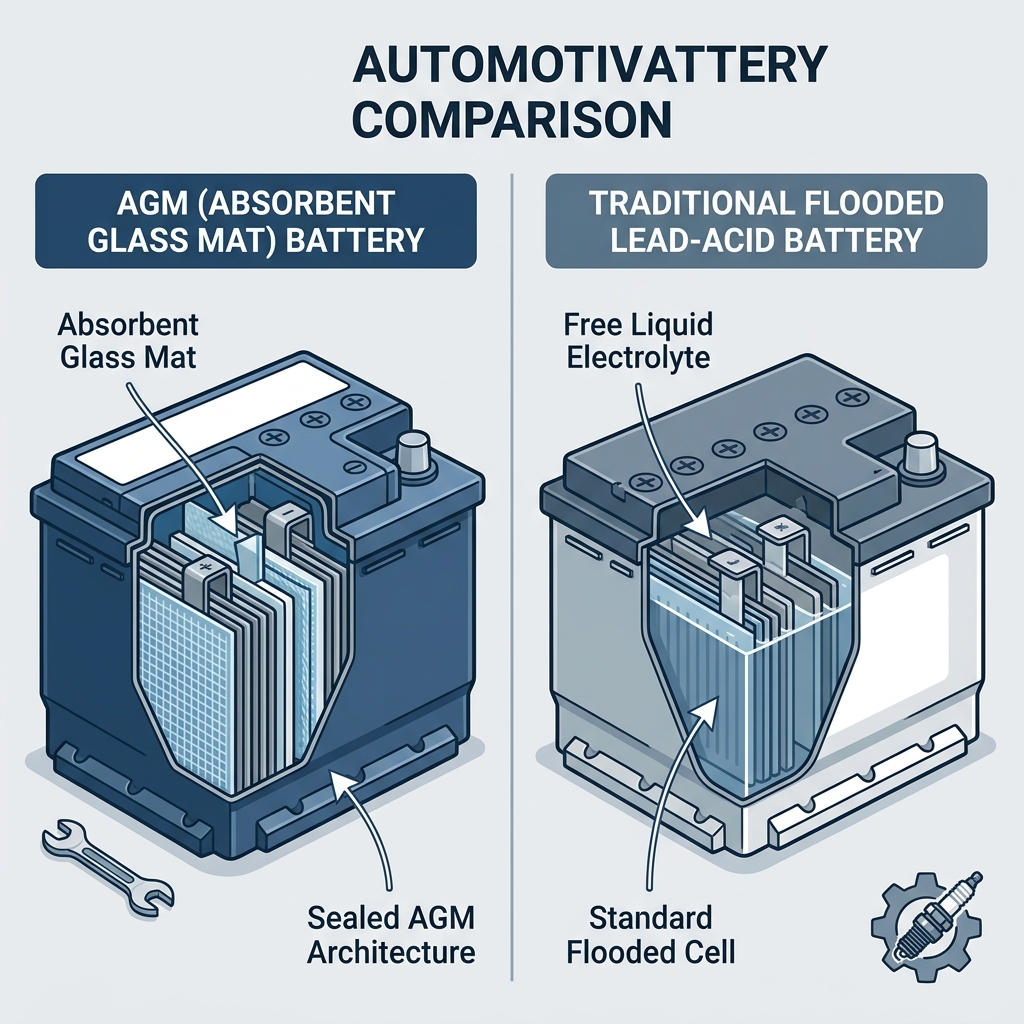

Can you replace a standard Chevy flooded battery with an AGM battery? Yes, absolutely. Upgrading from a conventional flooded lead-acid battery to an Absorbent Glass Mat (AGM) battery is one of the single best reliability upgrades you can make for a Chevrolet equipped with factory remote start, heat seats, and automatic stop-start engines.
AGM batteries hold electrolyte bound within fiberglass mat separators rather than liquid acid. This construction delivers up to 3 times longer service life, significantly higher cold cranking power, superior electrical draw recovery, and complete leak-proof vibration protection. However, when converting to AGM, your Chevrolet's Battery Monitoring System (BMS) must be recalibrated via dealer diagnostic tools so the charging algorithm optimizes output voltage for AGM chemistry.
Aftermarket Remote Starters vs. Factory Chevy Systems: Warranty and Electrical Risks
Magnuson-Moss Act
Does installing an aftermarket remote start void a Chevrolet vehicle warranty? Under the federal Magnuson-Moss Warranty Act, simply installing an aftermarket part does not automatically void your entire factory coverage. However, if an improperly wired unit causes damage to OEM electronics, repair coverage for affected systems will be denied.
Parasitic Battery Drain
Cheap third-party bypass modules often remain active when the vehicle is turned off, constantly pulling 100mA to 300mA of phantom draw. Over 24 to 48 hours, this parasitic drain flattens your 12V battery, leaving you stranded and permanently damaging battery cell plates.
BCM Interference
Modern GM Global A and VIP architecture relies heavily on high-speed CAN-bus networks. Splicing into these wire harnesses can corrupt network signals, causing unexpected dashboard warning lights, power window failures, and complete BCM lockouts.
MyChevrolet App vs. Physical Key Fob: Resolving OnStar and Cellular Connectivity Issues

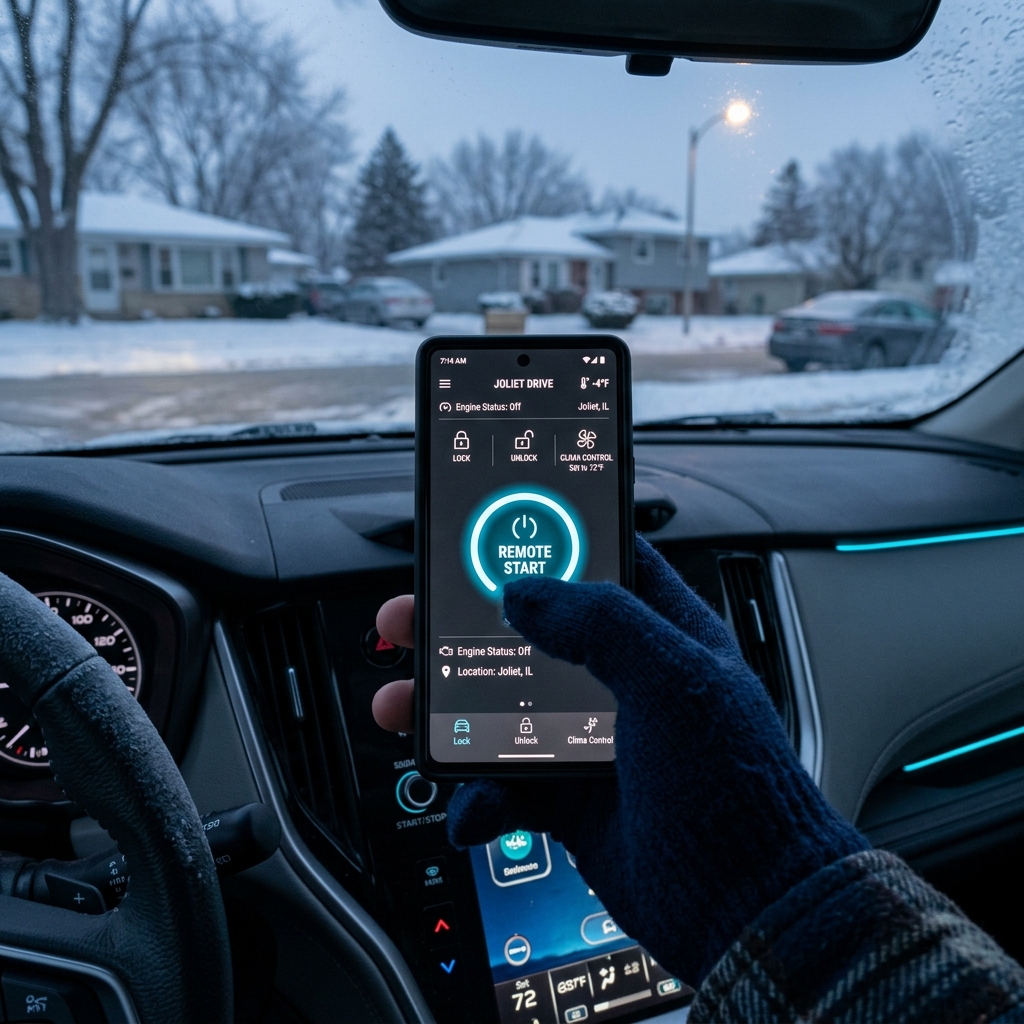

When remote start commands fail, it is essential to distinguish between a physical RF key fob issue and a mobile app cellular transmission failure. Physical key fobs utilize radio frequency signals over short distances (typically 200 to 300 feet). If your fob works when standing right next to your vehicle, the issue may simply be physical distance or radio interference.
Conversely, the MyChevrolet Mobile App sends remote start commands via OnStar cellular networks. If your app commands fail while commuting between Naperville, Plainfield, and Joliet, verify that your smartphone has an active data connection and that your vehicle is parked in an area with adequate 4G LTE/5G coverage. If the vehicle sits unstarted for more than 4 consecutive days, OnStar enters deep power-save sleep mode, requiring a manual key start to reset cellular communications.
Where Near Joliet Can You Get a Pre-Winter Battery and Charging-System Check?
Where near Joliet can you get a pre-winter battery and charging-system check? Look no further than Hawk Chevrolet of Joliet, located conveniently at 2001 W Jefferson St, Joliet, IL 60435. Our state-of-the-art service facility is staffed by factory-certified GM technicians equipped with automated conductance analyzers, digital load testers, and GM MDI2 diagnostic scanners.
Our comprehensive pre-winter electrical inspection covers battery state-of-health (SOH), alternator ripple voltage, starter motor current draw, hood pin latch resistance, and BCM trouble code history. If you are preparing for winter trips or shopping for a new vehicle, feel free to Browse New Inventory or Browse Used Inventory online before stopping by our dealership location.
Step-by-Step Chevy Remote Start Reset and Diagnostic Checklist
1. Fob & Door Check
Press the manual door lock button on your door panel to confirm all actuators seat properly. Test your key fob battery voltage with a digital multimeter to confirm a reading above 2.8V.
2. Hood Pin & DTC Test
Pop and firmly slam shut the engine hood to clear stuck hood switches. Plug in an OBD-II scanner to ensure no active or pending engine codes are blocking the start sequence.
3. Logic Reset
Perform a manual vehicle start with your physical key/push-button, let the engine idle for 30 seconds, and shut it off. This clears temporary logic lockout flags in the BCM software.
Estimated Repair Costs for Chevrolet Remote Start and Electrical Components
|
Service / Component
|
Estimated Cost
|
|
Key Fob Battery Replacement (CR2032)
|
$5 - $15
|
|
OEM Replacement Key Fob & Programming
|
$150 - $350
|
|
Hood Latch Pin Switch Replacement
|
$80 - $180
|
|
Heavy-Duty AGM Battery Installation
|
$200 - $350
|
We believe in transparent pricing and clear estimates. If you are considering trading in your current vehicle rather than completing major electrical repairs, you can easily Value Your Trade online today.
Schedule Chevrolet Remote Start Diagnostics & Battery Service at Hawk Chevrolet of Joliet
Do not let a non-functioning remote start leave you shivering in a freezing vehicle this winter. The factory-trained master technicians at Hawk Chevrolet of Joliet are here to help drivers across Joliet, Plainfield, and Naperville pinpoint and repair all remote start, battery, and electrical issues quickly and affordably.
Whether you need a quick $5 key fob battery change, an upgraded AGM battery installation, or a complete diagnostic sweep for electrical fault codes, our team is committed to providing outstanding local service. You can also explore financing options using Get Pre-Approved for Financing if you are planning to upgrade your entire vehicle.
